Centrifugal Pump

Sanitary Centrifugal Pump

Sanitary Centrifugal Pump

Sanitary Centrifugal Pump Specification

Max Suction
8 meter

Noise Level
75 dB(A)

Theory
Centrifugal Pump

Head Size
Max. 38 meter

Caliber
32 mm to 65 mm

Inlet/Outlet
32 mm / 25 mm

Voltage
230V / 380V

Flow Rate
3 m3/h to 50 m3/h

Mounting Type
Baseplate

Control System
Manual/Automatic

Working Temperature
-10C to 120C

Frequency
50 Hz / 60 Hz

Discharge Pressure
Up to 5 bar

Speed
2900 RPM

Features
Easy cleaning, corrosion resistance, CIP/SIP

Material
Stainless Steel 304/316

Structure
Horizontal

Power
0.75 kW to 7.5 kW

Standard
3A, DIN, SMS, ISO

Fuel Type
Electric

Pressure
Max. 5 bar

Usage
Other

Application
Other

Suction Type
Single stage

Seals Type
Mechanical Seal

Priming
Self-priming (optional)

Pump Type
Sanitary Centrifugal Pump

Capacity
3 m3/h to 50 m3/h

Surface Finish
Mirror polished / Satin finish

Impeller Type
Open / Closed

Blade Diameter
90 mm to 170 mm

Max Media Viscosity
Up to 500 cP

Protection Class
IP55

Connection Type
Tri-clamp, Threaded, Flanged

Maximum Particle Size
Up to 6 mm

Weight
28 kg to 90 kg (depending on model)

Seal Material Options
EPDM, Viton, PTFE

Cooling Type
Air cooled

Sanitary Centrifugal Pump Trade Information

Minimum Order Quantity
10 Pieces

Supply Ability
1000 Pieces Per Year

Delivery Time
1 Week

Main Domestic Market
All India

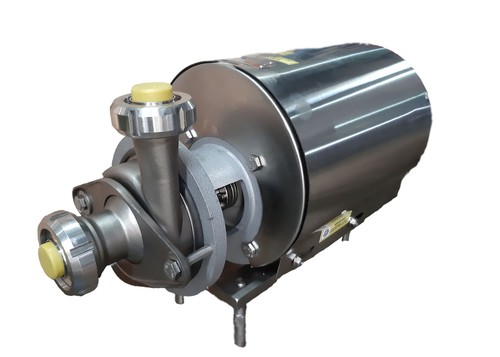

About Sanitary Centrifugal Pump

The Flowtrans SS sanitary centrifugal pump is a kind of classification of pump in use, which involves the transportation of all liquid without human touch, used at pharmaceuticals, dairy, food, beverages, comatics and chemical industries etc.

Highly Versatile and Hygienic Design

This pump is designed to meet the demanding requirements of sanitary fluid transfer, with features like easy cleaning, CIP/SIP compatibility, and high-quality stainless steel construction. Suitable for applications in environments where cleanliness and contamination prevention are paramount, it caters to stringent industry standards like 3A, DIN, SMS, and ISO.

Flexible Installation and Maintenance

With multiple mounting and connection options, including baseplate installation and tri-clamp, threaded, or flanged interfaces, this pump can be seamlessly integrated into diverse processing lines. Mirror or satin finishes along with robust seal options ensure both durability and simplified ongoing maintenance, reducing downtime and supporting hygienic operations.

Reliable Performance Across Applications

Equipped with an IP55 protection class, the centrifugal pump is air-cooled and can operate on both 230V and 380V systems at 50/60Hz. With a maximum suction height of 8 meters, a head size up to 38 meters, and flow rates up to 50 m3/h, it's engineered to deliver consistent performance under challenging sanitary conditions.

FAQ's of Sanitary Centrifugal Pump:

Q: How does the sanitary centrifugal pump ensure easy cleaning and hygiene maintenance?

A: This pump is designed for sanitary processes, featuring options for mirror polished or satin surfaces and compatibility with CIP (Clean-in-Place) and SIP (Sterilize-in-Place) systems. Its stainless steel construction and smooth internal surfaces minimize residue build-up, enabling quick and effective cleaning to prevent contamination.

Q: What types of connections and installations are available for this centrifugal pump?

A: The pump supports tri-clamp, threaded, and flanged connections, allowing flexible integration into existing setups. It mounts securely on a baseplate, and its versatile size range (caliber from 32 mm to 65 mm) fits various pipelines commonly found in sanitary processing lines.

Q: When is it best to use an open versus a closed impeller in this pump?

A: Open impellers are most suitable for handling fluids containing small particulates or higher viscosity media, as they are less prone to clogging. Closed impellers, on the other hand, offer higher efficiency and are recommended for transferring clear or low-viscosity liquids where maximum performance is required.

Q: Where can this sanitary centrifugal pump be applied?

A: This pump is widely used in industries that demand high levels of hygiene, such as food processing, beverages, dairy, pharmaceuticals, and chemicals, particularly where sanitary transfer and easy cleanup are critical.

Q: What is the maximum flow rate and particle handling capability of this pump?

A: Depending on the selected model, the pump can deliver a flow rate from 3 m3/h up to 50 m3/h and efficiently handle media with particle sizes up to 6 mm, making it suitable for a broad range of sanitary fluid transfer tasks.

Q: How does the mechanical seal type benefit pump operation?

A: Mechanical seals made from EPDM, Viton, or PTFE enhance the pump's longevity by providing a tight seal that resists chemical aggression, high temperature, and pressure up to 5 bar. This reduces maintenance frequency and assures process integrity in sanitary environments.

Q: What is the installation process for integrating this pump into a production line?

A: Installation involves mounting the pump on the provided baseplate and connecting it via tri-clamp, threaded, or flanged inlets and outlets. The unit accommodates both manual and automatic controls, supporting quick electrical connectivity to either 230V or 380V sources, and integrates easily into sanitary processing systems.
